As a reputable supplier of Resilient Gate Valves, I often receive inquiries from customers about the proper installation of actuators on these valves. In this blog post, I'll provide a comprehensive guide on how to install an actuator on a Resilient Gate Valve, ensuring a smooth and efficient process.
Understanding the Basics
Before we dive into the installation process, it's crucial to understand the key components involved. A Resilient Gate Valve is a type of valve that uses a flexible rubber or elastomeric seal to provide a tight shut-off. Actuators, on the other hand, are devices that automate the operation of the valve, allowing for remote or automated control.
Tools and Materials Needed
To install an actuator on a Resilient Gate Valve, you'll need the following tools and materials:
- Actuator: Make sure you have the correct actuator for your valve. Consider factors such as valve size, torque requirements, and control type.
- Mounting Kit: This typically includes bolts, nuts, washers, and a mounting bracket.
- Wrenches: Various sizes of wrenches will be needed to tighten bolts and nuts.
- Screwdrivers: Phillips and flathead screwdrivers may be required for certain adjustments.
- Sealant: A suitable sealant to prevent leaks.
- Safety Equipment: Gloves, safety glasses, and any other necessary safety gear.
Step-by-Step Installation Process
Step 1: Prepare the Valve
- Inspect the Valve: Before installation, carefully inspect the Resilient Gate Valve for any damage or defects. Ensure that the valve is clean and free of debris.
- Position the Valve: Place the valve in the desired location, making sure it is properly aligned and supported. Use appropriate gaskets or seals to prevent leaks.
Step 2: Mount the Actuator Bracket
- Locate the Mounting Holes: Identify the mounting holes on the valve body. These holes are usually pre-drilled and designed to match the actuator mounting bracket.
- Attach the Bracket: Place the mounting bracket over the valve body and align it with the mounting holes. Insert the bolts through the holes in the bracket and valve body, and secure them with nuts and washers. Tighten the bolts evenly to ensure a secure fit.
Step 3: Install the Actuator
- Position the Actuator: Carefully place the actuator on the mounting bracket. Make sure the actuator is properly aligned with the valve stem.
- Connect the Actuator to the Valve Stem: Depending on the type of actuator, you may need to use a coupling or adapter to connect the actuator to the valve stem. Follow the manufacturer's instructions for proper installation.
- Secure the Actuator: Once the actuator is connected to the valve stem, use bolts or other fasteners to secure the actuator to the mounting bracket. Tighten the fasteners evenly to prevent any movement or misalignment.
Step 4: Connect the Wiring
- Identify the Wiring Terminals: Locate the wiring terminals on the actuator. These terminals are usually labeled to indicate the type of connection (e.g., power, control, feedback).
- Connect the Wires: Follow the wiring diagram provided by the actuator manufacturer to connect the wires to the appropriate terminals. Use wire nuts or other suitable connectors to ensure a secure connection.
- Test the Wiring: Before powering on the actuator, double-check all the wiring connections to ensure they are correct. Use a multimeter to test the continuity of the wires and verify that there are no short circuits.
Step 5: Adjust the Actuator
- Set the Travel Limits: Most actuators allow you to set the travel limits to control the opening and closing of the valve. Use the actuator's adjustment screws or controls to set the travel limits according to your requirements.
- Calibrate the Actuator: Some actuators may require calibration to ensure accurate operation. Follow the manufacturer's instructions for calibration, which may involve adjusting the positioner or other components.
- Test the Actuator: Once the actuator is installed and adjusted, test it to ensure it is operating correctly. Power on the actuator and use the control system to open and close the valve. Check for any abnormal noises, vibrations, or other issues.
Troubleshooting Tips
- Leakage: If you notice any leakage around the valve or actuator, check the seals and gaskets for damage or improper installation. Tighten any loose bolts or nuts, and apply additional sealant if necessary.
- Actuator Not Operating: If the actuator is not operating, check the power supply, wiring connections, and control settings. Make sure the actuator is properly grounded and that there are no blown fuses or tripped circuit breakers.
- Incorrect Valve Position: If the valve is not opening or closing to the desired position, check the travel limits and calibration settings. Adjust the settings as needed to ensure accurate operation.
Conclusion
Installing an actuator on a Resilient Gate Valve is a relatively straightforward process, but it requires careful attention to detail and following the manufacturer's instructions. By following the steps outlined in this guide, you can ensure a successful installation and reliable operation of your valve and actuator system.

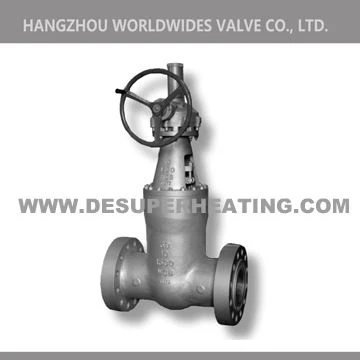

If you're interested in purchasing a Resilient Gate Valve or an actuator, or if you have any questions about the installation process, please feel free to [contact us for procurement and negotiation]. We offer a wide range of high-quality API Cast Steel Flange End Gate Valve, Rising Stem Flanged Ends Gate Valve, and ASTM A216 Wcb OS&Y Stem Gate Valves to meet your specific needs.
References
- Manufacturer's installation manuals for Resilient Gate Valves and actuators.
- Industry standards and best practices for valve installation and maintenance.
